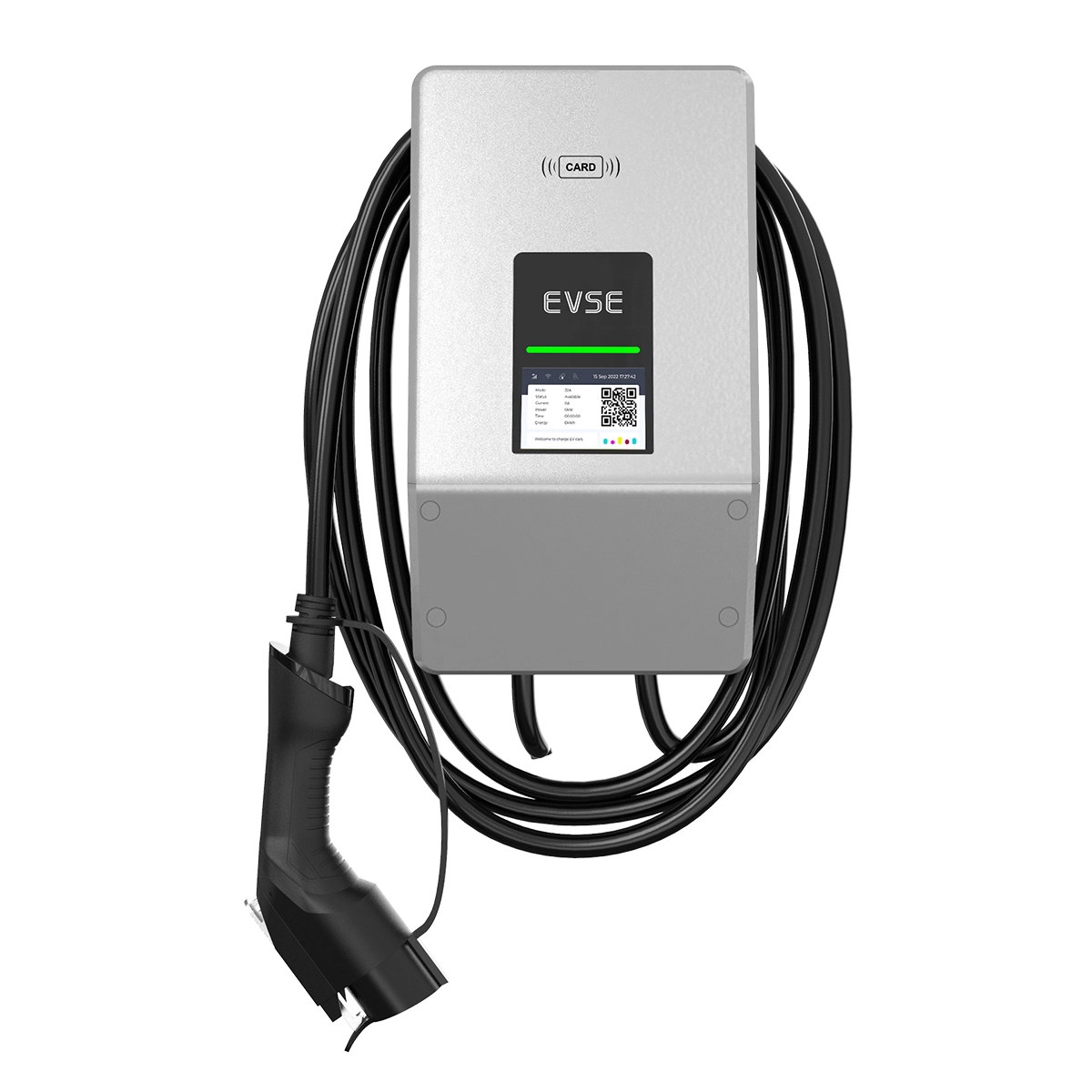

Wallbox AC EV Charger for Commercial

Designed for public and commercial charging applications Supports high-frequency use with stable performance Compatible with smart charging systems and management Suitable for parking lots, offices, and commercial facilities

Wallbox Charger for Commercial

Designed for public and commercial charging applications
Supports high-frequency use with stable performance
Compatible with smart charging systems and management
Suitable for parking lots, offices, and commercial facilitie

Model
Technical features
Charging capacity	YL7K- P1: Up to 7KW YL11K- P2: Up to 11KW YL22K- P3: Upto 22KW
Input/Output power	240VAC+20%-50/60Hz -32A-1 phase	400VAC+20%-50/60Hz- 16A-3phase	400VAC+20%-50/60Hz-32A- 3phase
RCD	RCMU(Type A+ DC 6mA)/ Type B RCCB(Optional)
Standby power	<3W
Measuring accuracy	1%
Energy Meter	MID certified
Load balancing	CT+Meter(Optional)
PEN Protection	Optional
OCPP	OCPP1.6 Json(OCPP2.0 optional)
Communication	Bluetooth / WIFI / Ethernet / 4G(Optional)
User interface	LED / LCD(3.5") / RFID( mifare iso& IEC 14443A)
Input Plug	NEMA 14-50(Optional)
Certificate/Compliance	CE/ FCC/ ROHS/ REACH/ IEC/ EN 61851-1, IEC/ EN61851-21-2, IEC/ EN 62955, EN300328, EN301489-1/-17, EN62479, UL 817, UL 991, UL 2231, UL 225, and UL 2594 ..
Charging Interface	Type 2 socket/ 5M Cable Type 2 socket/ 5M Cable Type 2 socket/ 5M Cable SAE J1772 32A 5M(optional) SAE J1772 40A 5M(optional) \| SAE J1772 48A 5M(optional)
Special Protection	Over current protection, Residual current protection, Ground protection, Surge protection, Over/ Under voltage protection, Over/ Under frequency protection, Over/ Under temperature protection
Physical properties
IP Level	IP65, IK10
Enclosure	Plastic PC940/ Galvanized steel
Front Panel	Tempere d glass
Installation	Wall-mount / Pole-mount
Cooling	Natural cooling
Operating temperature	-30°C to +55°C
Humidity	Max 95%(non-regulating)
Product Dimensions	216150 380(LW H) mm
Package Dimension	530530360(LW H) mm
Net Weight	5.5Kg
Gross Weight	7.6Kg

Inquiry

Write a Review

FAQ

What is your shipping timeline?

Below are the shipping times for different types of orders: Samples - Shipped within 72 hours Bulk Orders - 10 to 40 days, subject to the delivery time confirmed by both parties Orders of Less Than 500 Units - 15 to 20 days Orders of More Than 500 Units - 30 to 40 days

How do I choose the correct charging station power level?

There are two things to take into consideration when determining the charging power of your EV charging station: The vehicle model: 1. If the vehicle model supports up to 7kW of charging power, select a 7kW charging station. 2. If the vehicle model supports up to 11kW of charging power, select a 11kW charging station. 3. If the vehicle model supports up to 16/21kW of charing power, select a 21kW charging station (modelX, modelS). 4. If you will be charging two or more electric vehicles, consider a 21kW charging station, which is compatible with 21kW, 11kW, and 7kW electic vehicles. The update and iteration speed is fast. The electricity meter: 1. For a 220V single-phase electricity meter, select a 7kW charging station. 2. For a 380V three-phase electricity meter, select a 11kW or 21kW charging station.

What is included in the package for your charging stations? Is a warranty card included?

Our packing list includes: 1. 1 AC charging station (including gun cable) 2. 1 AC charging station user manual 3. 1 certificate of conformity 4. 4 M6*30mm rubber plugs (if product is a wall-mounted charger) 5. 4 M3*35mm flat head screws, 3 M3*25mm round head screws with pads (if product is a wall-mounted charger)

What is your return and exchange policy?

Customers can return or exchange products unconditionally within 7 days of receiving their order. We will bear the postage for any returns or exchanges that are due to quality issues. Returns or exchanges due to reasons that are not quality related must not affect the secondary sale.

What is the cost of installation?

Installation costs vary depending on the environment and location. Consult with local installation companies to determine the specific price of installation.

What kinds of EVs does your EV charger support?

Our charging stations can be used by all new energy vehicles that implement global charging standards, and they are compatible with 99.9% of electric vehicles on the market. That being said, the recommended charging power can differ depending the model of your vehicle, so please be sure to select a charging station that supports your vehicle's ideal charging power. If you provide me with the brand, model, and year of the car you have in mind, I can help you confirm compatibility.

What is the output current of the charging station?

According to power, it can be divided into the following: 7KW is suitable for 220V single AC power, with an output current of 32A, using a 3-core 6- square cable. 11KW is suitable for 380V three-phase AC power, with an output current of 16A, using a 5-core 2.5 square meter cable. 22KW is suitable for 380V three-phase AC power, with an output current of 32A, using a 5-core 6-square cable.

What is the charging speed of your product?

According to 1Kwh, it can travel 6.5km, The 7KW charging station can charge 45.5km per hour, The 11KW charging station can charge 71.5km per hour, The 21KW charging station can charge 143km per hour.

How to calculate charging time?

Answer: In 220V/32A mode, the theoretical charging power is 7KW/h, which means charging 7 kWh per hour. The theoretical range for one kWh is 6.5km. Taking Tesla Model 3 (Standard Range Edition) as an example, it has a full charge range of 445km. It takes about 9 hours to fully charge.

What after-sales support is available?

In addition to quality assurance, we also provide lifetime technical support and after-sales maintenance services, product upgrade services, new product notifications, and more.
