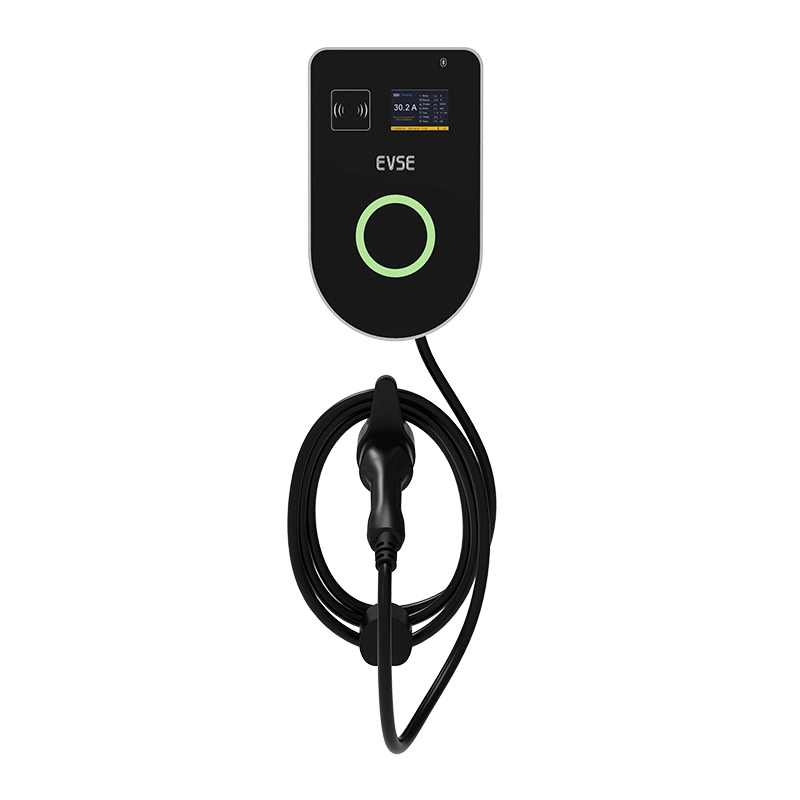

Good Price AC EV Charger J1772 Type 2 Plug EV charger Stations Pile 7kw 11kw 22kw Vehicle Car Charging Stations
Designed for public and commercial charging applications
Supports high-frequency use with stable performance
Compatible with smart charging systems and management
Suitable for parking lots, offices, and commercial facilities
Wallbox Charger for Commercial
- Designed for public and commercial charging applications
- Supports high-frequency use with stable performance
- Compatible with smart charging systems and management
- Suitable for parking lots, offices, and commercial facilities
|
Model |
YL7K-S1 |
YL11K-S2 |
YL22K-S3 |
|
Charging capacity |
Up to 7kW |
Up to 11kW |
Up to 22kW |
|
Input/Output power |
230VAC+20%-50/60Hz- 400VAC+20%-50/60Hz- 400VAC+20%-50/60Hz- 32A-1phase 16A-3phase 32A-3phase |
||
|
RCD |
RCMU(Type A+ DC 6mA)/ Type B RCCB(Optional) |
||
|
Standby power |
<3W |
||
|
Measuring accuracy |
1% |
||
|
Energy meter |
MID certified |
||
|
OCPP |
OCPP1.6 Json(OCPP2.0 optional) |
||
|
Communication |
WIFI/Ethernet/4G(Optional) |
||
|
User interface |
LED/LCD(3.5")/RFID(mifare iso& IEC 14443A) |
||
|
Certificate/ Compliance |
CE/FCC/ROHS/REACH/IEC/EN 61851-1, IEC/EN 61851-21-2, IEC/EN 62955. EN300328, EN 301489-1/-17, EN62479 |
||
|
Charing interface |
Type 2 Socket/5M cable |
||
|
Special protection |
Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection |
||
|
Protection |
IP54, IK10 |
||
|
Enclosure |
Plastic Pc940/Galvanized steel |
||
|
Front Panel |
Temper glass |
||
|
Installation |
Wall-mount/Pole-mount |
||
|
Cooling |
Natural cooling |
||
|
Operating temperature |
-30°C to + 55°C |
||
|
Humidity |
Max.95%(non-regulating) |
||
|
Product dimensions |
320*230*100(L*W*H)mm |
||
|
Package dimension |
480*340*290(L*W*H)mm |
||
|
Net weight |
8Kg |
||
|
Gross Weight |
9Kg |
||
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Home EV Wallbox with cable
● Safe and fast: The best charging station for home and private use Type A+DC 6mA leakage protection;
● Simple and intelligent: Home use app with intelligent bluetooth control the wallbox Dynamic Load Balance
● Flexible Option: Type 1 or Type 2 charging cable Wall-mount or flfloor-stand installation
product specifications
Other attributes
Packaging and delivery
Supply ability
Lead time
Main Parameters
| Input/Output power | 400VAC±20%-50/60Hz-32A-3 phase |
| Communication | WIFI(Optional) APP |
| PEN Protection | Optional |
| Certificate | CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018 |
| Protection | IP54, IK10 |
| Charging capacity | Up to 22kw |
| RCD | 30Ma RCD Type A and DC 6Ma RCD function |
| Load balancing | CT+Meter(Optional) |
| User interface | LED/LCD(3.5")/ RFID(mifare iso& IEC 14443A) |
|
Packaging details |
A: Single carton packing+pallets B: Wooden case packing+pallets C: As customer's requirement |
|
Supply ability |
1000 Piece/Pieces per Day |
|
Quantity (pieces) |
1 - 3 |
> 3 |
|
Lead time (days) |
16 |
To be negotiated |
|
Model
|
SPBAC7JH3
|
SPBAC7JH4
|
SPBAC7JH5
|
|
Technical Features
|
|||
|
Charging capacity
|
Up to 7KW
|
Up to 11 KW
|
Up to 22KW
|
|
Input/Output power
|
230VAC±20%-50/60Hz-32A-
1phase |
400VAC±20%-50/60Hz-
16A-3phase |
400VAC±20%-50/60Hz-
32A-3phase |
|
RCD
|
30Ma RCD Type A and DC 6Ma RCD function
|
||
|
Standby power
|
<3W
|
||
|
Measuring accuracy
|
1%
|
||
|
Communication
|
Bluetooth/WIFI(Optional) APP
|
||
|
Load balancing
|
CT+Meter((Optional))
|
||
|
PEN Protection
|
Optional
|
||
|
User interface
|
LED/LCD(3.5")/ RFID(mifare iso& IEC 14443A)
|
||
|
Certifificate/Compliance
|
CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
|
||
|
Charging Interface
|
Type 2 cable 5M
|
Type 2 cable 5M
|
Type 2 cable 5M
|
|
Special Protection
|
Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
|
||
|
Physical Properties
|
|||
|
Warranty
|
1 year
|
||
|
Protection
|
IP54, IK10,
|
||
|
Enclosure
|
Plastic PC940/ Galvanized steel
|
||
|
Front Panel
|
Temper glass
|
||
|
Installation
|
Wall-mount/Pole-mount
|
||
|
Cooling
|
Natural cooling
|
||
|
Operating temperature
|
-30℃ to +55℃
|
||
|
Humidity
|
Max.95%(non-regulating)
|
||
|
Product Dimensions
|
320*230*100(L*W*H)mm
|
||
|
Package Dimension
|
465*325*270(L*W*H)mm
|
||
|
Net Weight
|
5.1Kg
|
5.5Kg
|
5.5Kg
|
|
Gross Weight
|
5.8Kg
|
6.2Kg
|
6.5Kg
|
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
FAQ
1
What is your shipping timeline?
Below are the shipping times for different types of orders:
Samples - Shipped within 72 hours
Bulk Orders - 10 to 40 days, subject to the delivery time confirmed by both parties
Orders of Less Than 500 Units - 15 to 20 days
Orders of More Than 500 Units - 30 to 40 days
2
How do I choose the correct charging station power level?
There are two things to take into consideration when determining the charging power of your EV charging station:
The vehicle model:
1. If the vehicle model supports up to 7kW of charging power, select a 7kW charging station.
2. If the vehicle model supports up to 11kW of charging power, select a 11kW charging station.
3. If the vehicle model supports up to 16/21kW of charing power, select a 21kW charging station (modelX, modelS).
4. If you will be charging two or more electric vehicles, consider a 21kW charging station, which is compatible with 21kW, 11kW, and 7kW electic
vehicles. The update and iteration speed is fast.
The electricity meter:
1. For a 220V single-phase electricity meter, select a 7kW charging station.
2. For a 380V three-phase electricity meter, select a 11kW or 21kW charging station.
3
What is included in the package for your charging stations? Is a warranty card included?
Our packing list includes:
1. 1 AC charging station (including gun cable)
2. 1 AC charging station user manual
3. 1 certificate of conformity
4. 4 M6*30mm rubber plugs (if product is a wall-mounted charger)
5. 4 M3*35mm flat head screws, 3 M3*25mm round head screws
with pads (if product is a wall-mounted charger)
4
What is your return and exchange policy?
Customers can return or exchange products unconditionally within 7 days of receiving their order. We will bear the postage for any returns or
exchanges that are due to quality issues. Returns or exchanges due to reasons that are not quality related must not affect the secondary sale.
5
What is the cost of installation?
Installation costs vary depending on the environment and location. Consult with local installation companies to determine the specific price of
installation.
6
What kinds of EVs does your EV charger support?
Our charging stations can be used by all new energy vehicles that implement global charging standards, and they are compatible with 99.9%
of electric vehicles on the market. That being said, the recommended charging power can differ depending the model of your vehicle, so please be
sure to select a charging station that supports your vehicle's ideal charging power. If you provide me with the brand, model, and year of the car
you have in mind, I can help you confirm compatibility.
7
What is the output current of the charging station?
According to power, it can be divided into the following: 7KW is suitable for 220V single AC power, with an output current of 32A, using a 3-core 6-
square cable. 11KW is suitable for 380V three-phase AC power, with an output current of 16A, using a 5-core 2.5 square meter cable. 22KW is suitable
for 380V three-phase AC power, with an output current of 32A, using a 5-core 6-square cable.
8
What is the charging speed of your product?
According to 1Kwh, it can travel 6.5km,
The 7KW charging station can charge 45.5km per hour,
The 11KW charging station can charge 71.5km per hour,
The 21KW charging station can charge 143km per hour.
9
How to calculate charging time?
Answer: In 220V/32A mode, the theoretical charging power is 7KW/h, which means charging 7 kWh per hour. The theoretical range for one kWh is
6.5km. Taking Tesla Model 3 (Standard Range Edition) as an example, it has a full charge range of 445km. It takes about 9 hours to fully charge.
10
What after-sales support is available?
In addition to quality assurance, we also provide lifetime technical support and after-sales maintenance services, product upgrade services,
new product notifications, and more.
