55 Large Screen Advertising Floor Ac Ev Charger 14kw 22kw 44kw With App Control 1

55 Large Screen Advertising Floor Ac Ev Charger 14kw 22kw 44kw With App Control 2

55 Large Screen Advertising Floor Ac Ev Charger 14kw 22kw 44kw With App Control 3

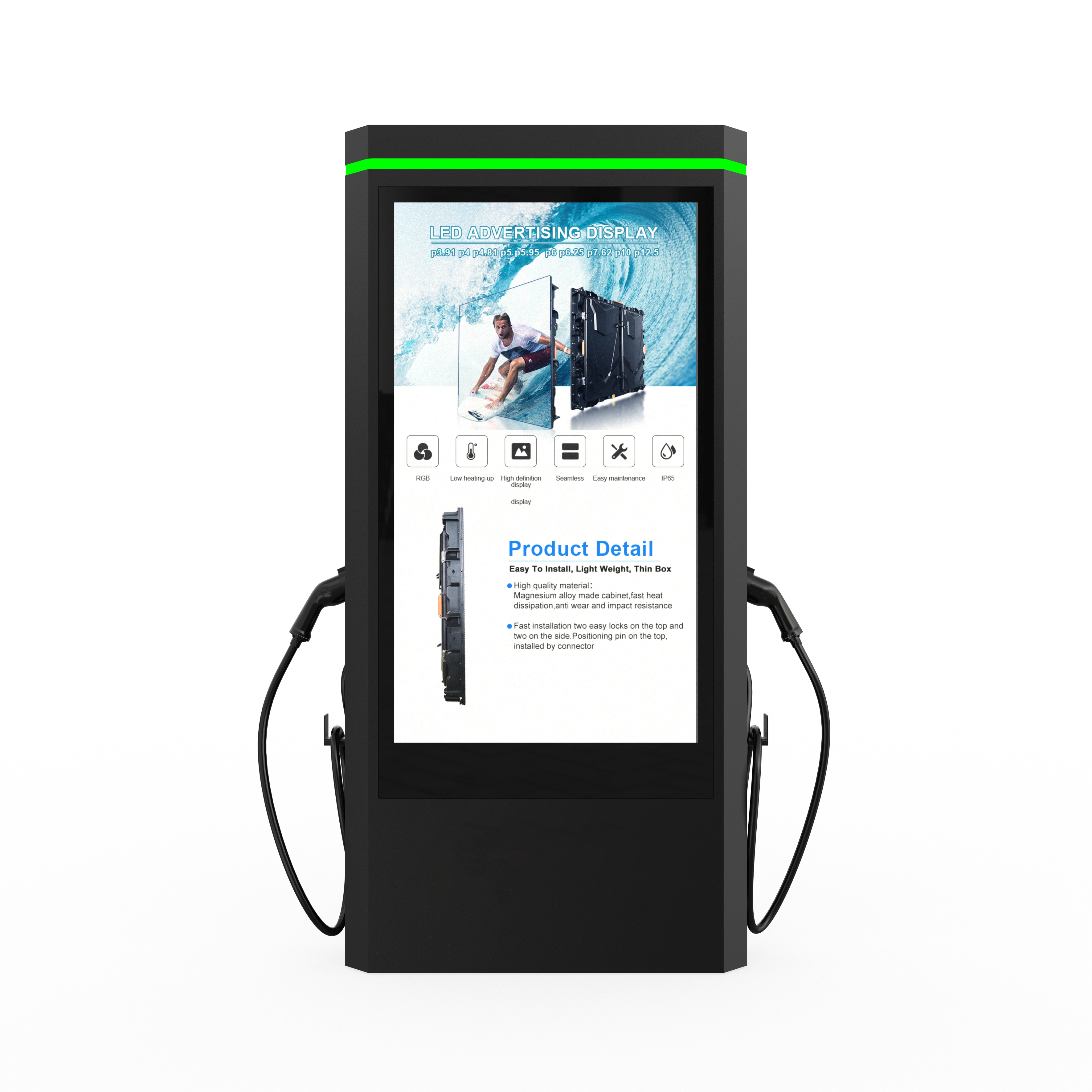

55" Large Screen Advertising Floor Ac Ev Charger 14kw 22kw 44kw With App Control

Innovativeness

One charger with two output sockets

Business use with intelligent App control

Vandal resistant and anti-corrosion

Inquiry

Write a Review

Product Description

● Intelligent Control

● Ethernet/4G/Wi-Fi communication all supported

● OCPP communication protocol with CMS

● Intelligentoperation by App and cashless payment

● Large screen advertising revenue

● 55" HDV 2500cd/m²

● Remotely update AD content

product specifications

Technical features

Advertising display

Physical properties

Model	YLEV44K-Y4
Technical features
Charging capacity	Up to 44KW(22KW*2)
Input/Output power	400VAC±20%-50/60Hz-32A*2-3phase
RCD	30Ma RCD Type A and DC 6Ma RCD function
Standby power	<60W
Measuring accuracy	1%
Energy Meter	MID certified
OCPP	OCPP1.6 Json(OCPP2.0 optional)
Communication	WIFI/Ethernet/4G(Optional)
User interface	LED/LCD(5")/ RFID(mifare iso& IEC 14443A)
Certificate / Compliance	CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
Charging Interface	Type 2 Gun *25M
Special Protection	Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection

Advertising display
Mainboard	Android based Quad-core
RAM	2GB
Storage	8GB, can extend to 32GB
Video format	MPG, MPG-1, MPG-2, MPG-4 , AVI, MP4, TS , MKV, WMV
Maximum decoding resolution	3480x2160
Picture format	GIF , JPEG, PNG, BMP
Audio output	2x10W
Audio format	MP3 , 24bit linear PCM7.1
Other format	PDF/RSS, News/ Weather-forecast
Network	RJ45 interface, WiFi, 4G (Option )
The update way for content	Network remote update, U disk update
Display mode	Landscape/Portrait, Full Screen/Any Split Screen
Program upgrade	Remote upgrade, remote upgrade
Timer switch	Support any time period
Panel parameters	Panel Type	55 inch LCD Panel
	Display area	1209*680mm
	Display ratio	16:9
	Backlight type	LED backlight
	Resolution	3480x2160
	Display color	16.7M
	Brightness	2500-cd/m2
	Contrast	3500:1
	View angle	178°(H)1178°(V)
	Response time	6ms
	Life time	50000 hours

Warranty	3 years
Protection	IP55(outdoor)
Special Protection	Topple & fall down protection
Cooling	Natural cooling
Operating temperature	-30℃ to +55℃
Humidity	Max.95%(non-regulating)
Dimensions	1900750210(LWH)
Weight	<120Kg

FAQ

What is your shipping timeline?

Below are the shipping times for different types of orders: Samples - Shipped within 72 hours Bulk Orders - 10 to 40 days, subject to the delivery time confirmed by both parties Orders of Less Than 500 Units - 15 to 20 days Orders of More Than 500 Units - 30 to 40 days

How do I choose the correct charging station power level?

There are two things to take into consideration when determining the charging power of your EV charging station: The vehicle model: 1. If the vehicle model supports up to 7kW of charging power, select a 7kW charging station. 2. If the vehicle model supports up to 11kW of charging power, select a 11kW charging station. 3. If the vehicle model supports up to 16/21kW of charing power, select a 21kW charging station (modelX, modelS). 4. If you will be charging two or more electric vehicles, consider a 21kW charging station, which is compatible with 21kW, 11kW, and 7kW electic vehicles. The update and iteration speed is fast. The electricity meter: 1. For a 220V single-phase electricity meter, select a 7kW charging station. 2. For a 380V three-phase electricity meter, select a 11kW or 21kW charging station.

What is included in the package for your charging stations? Is a warranty card included?

Our packing list includes: 1. 1 AC charging station (including gun cable) 2. 1 AC charging station user manual 3. 1 certificate of conformity 4. 4 M6*30mm rubber plugs (if product is a wall-mounted charger) 5. 4 M3*35mm flat head screws, 3 M3*25mm round head screws with pads (if product is a wall-mounted charger)

What is your return and exchange policy?

Customers can return or exchange products unconditionally within 7 days of receiving their order. We will bear the postage for any returns or exchanges that are due to quality issues. Returns or exchanges due to reasons that are not quality related must not affect the secondary sale.

What is the cost of installation?

Installation costs vary depending on the environment and location. Consult with local installation companies to determine the specific price of installation.

What kinds of EVs does your EV charger support?

Our charging stations can be used by all new energy vehicles that implement global charging standards, and they are compatible with 99.9% of electric vehicles on the market. That being said, the recommended charging power can differ depending the model of your vehicle, so please be sure to select a charging station that supports your vehicle's ideal charging power. If you provide me with the brand, model, and year of the car you have in mind, I can help you confirm compatibility.

What is the output current of the charging station?

According to power, it can be divided into the following: 7KW is suitable for 220V single AC power, with an output current of 32A, using a 3-core 6- square cable. 11KW is suitable for 380V three-phase AC power, with an output current of 16A, using a 5-core 2.5 square meter cable. 22KW is suitable for 380V three-phase AC power, with an output current of 32A, using a 5-core 6-square cable.

What is the charging speed of your product?

According to 1Kwh, it can travel 6.5km, The 7KW charging station can charge 45.5km per hour, The 11KW charging station can charge 71.5km per hour, The 21KW charging station can charge 143km per hour.

How to calculate charging time?

Answer: In 220V/32A mode, the theoretical charging power is 7KW/h, which means charging 7 kWh per hour. The theoretical range for one kWh is 6.5km. Taking Tesla Model 3 (Standard Range Edition) as an example, it has a full charge range of 445km. It takes about 9 hours to fully charge.

What after-sales support is available?

In addition to quality assurance, we also provide lifetime technical support and after-sales maintenance services, product upgrade services, new product notifications, and more.
