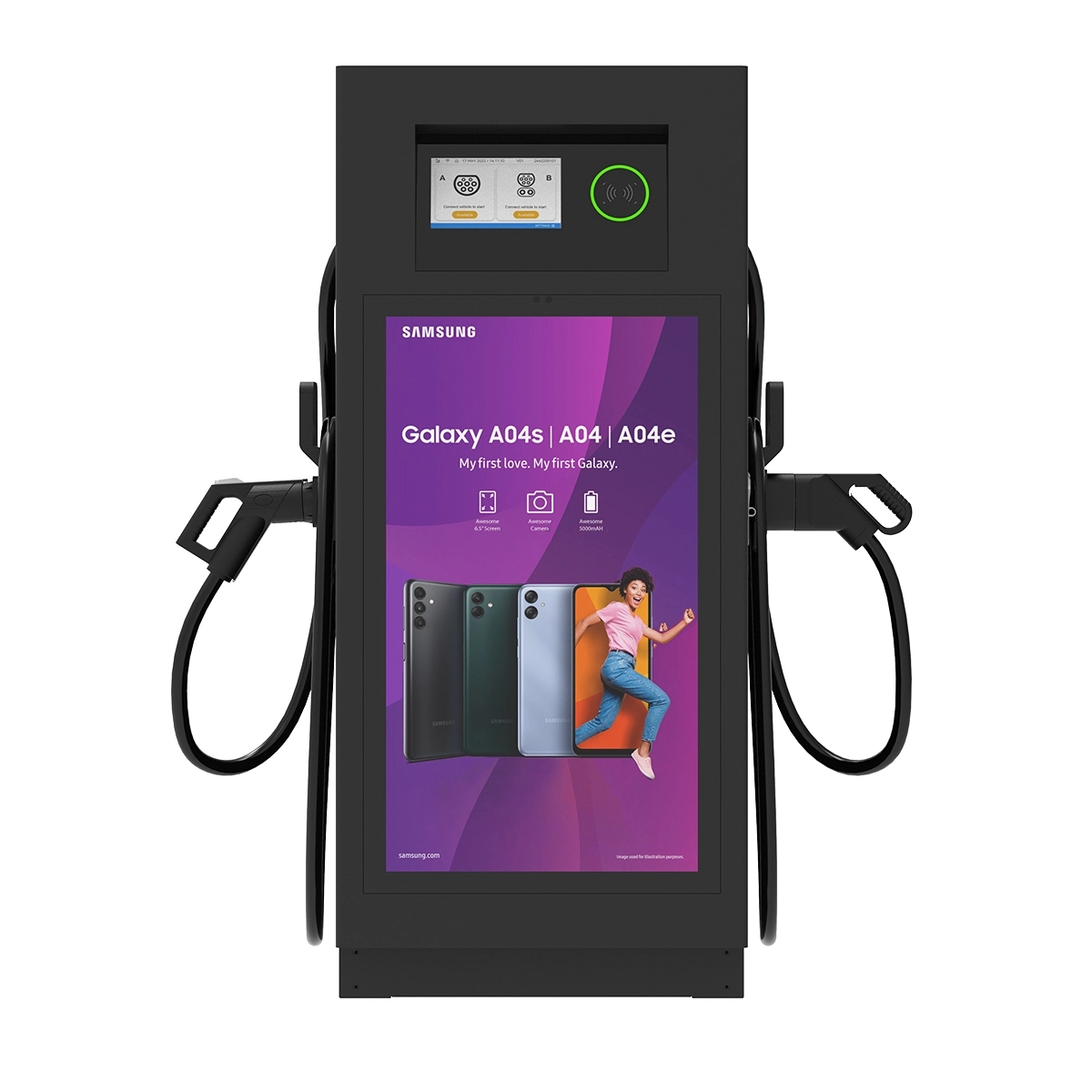

DC Advertising Charging Station(43"/55" Screen)

Ethernet / 4G / Wi-Fi communication all supported OCPP communication protocol with CMS Intelligent operation by App and cashless payment Large screen advertising revenue. One charger with two output sockets Business use with intelligent App control Vandal resistant and anti-corrosion

·Integrated EV charging and digital advertising display in one unit

·High-visibility screen for branding, promotions, and information display

·Ideal for commercial areas, shopping malls, and public parking spaces

·Smart charging operation with stable performance for long-term use

Model	YL60K-AD4: Up to 60KW YL120K-AD5: Up to 120KW YL160K-AD6: Up to 160KW
Technical features

Input/Output	400VAC+10%-50/60Hz- 3phase
Power factor	20.98
Efficiency	>95%
Measuring accuracy	level 0.5
Output voltage	CCS: 250~ 1000VDC
Output current	0-200A	0-250A
Communication		PLC (between charger & vehicle) Ethernet / 4G / OCPP 1.6J(optional)
User interface		LCD 7 inch Touch Screen / RFID card and APP
Versatility		EN/ IEC 61851-1: 2019, EN/ IEC 61851-23: 2014
Security design	protection, lightening surge protection	Over/under voltage protection, overload protection, current leakage protection, grounding
DC Plugs	CCS2 Cable 5M*2
Energy Meter	CE certified or PTB (optional)
RCD Optional	MCC B OR MCC B with typeA
Advertising display
Mainboard	Android based Quad-core
RAM	2GB
Storage	8GB, can extend to 32GB
Video format		MPG, MPG-1, MPG-2, MPG-4,AVI, MP4, TS, MKV, WMV
Maximum decoding	3480x2160
Picture format	GIF, JPEG, PNG, BMP
Audio output	2x10W
Audio format	Mp3, 24 bit linear PCM7.1
Other format	PDF/ RSS, News/Weather-forecast
Network	Rj45 interface, Wifi, 4G, Option
The update way for	Network remote update, U disk update
Display mode		Landscape/ Portrait, Full Screen/Any Split Screen
Program upgrade	Remote upgrade, remote upgrade
Timer switch	Support any time period
	Panel Type	55 inch LCD Panel
	Display area	1209*680mm
	Display ratio	0.672917
	Backlight type	LED backlight
	Resolution	3480x2160
Panel parameters	Display color	16.7M
	Brightness	3500-cd/m2
	Contrast	3500:1
	View angle	178°(H) / 178°(V)
	Response time	6ms
	Life time	50000 hours

Physical properties
IP Level	IP55(outdoor)
Special Protection	Topple & fall down protection
Cooling	Natural cooling
Operating temperature	-30°C to +55°C
Humidity	Max. 95%(non-regulating)
Dimensions	23101170650(LW H)
Net Weight	280Kg
Gross Weight	321Kg

Inquiry

Write a Review

FAQ

What is your shipping timeline?

Below are the shipping times for different types of orders: Samples - Shipped within 72 hours Bulk Orders - 10 to 40 days, subject to the delivery time confirmed by both parties Orders of Less Than 500 Units - 15 to 20 days Orders of More Than 500 Units - 30 to 40 days

How do I choose the correct charging station power level?

There are two things to take into consideration when determining the charging power of your EV charging station: The vehicle model: 1. If the vehicle model supports up to 7kW of charging power, select a 7kW charging station. 2. If the vehicle model supports up to 11kW of charging power, select a 11kW charging station. 3. If the vehicle model supports up to 16/21kW of charing power, select a 21kW charging station (modelX, modelS). 4. If you will be charging two or more electric vehicles, consider a 21kW charging station, which is compatible with 21kW, 11kW, and 7kW electic vehicles. The update and iteration speed is fast. The electricity meter: 1. For a 220V single-phase electricity meter, select a 7kW charging station. 2. For a 380V three-phase electricity meter, select a 11kW or 21kW charging station.

What is included in the package for your charging stations? Is a warranty card included?

Our packing list includes: 1. 1 AC charging station (including gun cable) 2. 1 AC charging station user manual 3. 1 certificate of conformity 4. 4 M6*30mm rubber plugs (if product is a wall-mounted charger) 5. 4 M3*35mm flat head screws, 3 M3*25mm round head screws with pads (if product is a wall-mounted charger)

What is your return and exchange policy?

Customers can return or exchange products unconditionally within 7 days of receiving their order. We will bear the postage for any returns or exchanges that are due to quality issues. Returns or exchanges due to reasons that are not quality related must not affect the secondary sale.

What is the cost of installation?

Installation costs vary depending on the environment and location. Consult with local installation companies to determine the specific price of installation.

What kinds of EVs does your EV charger support?

Our charging stations can be used by all new energy vehicles that implement global charging standards, and they are compatible with 99.9% of electric vehicles on the market. That being said, the recommended charging power can differ depending the model of your vehicle, so please be sure to select a charging station that supports your vehicle's ideal charging power. If you provide me with the brand, model, and year of the car you have in mind, I can help you confirm compatibility.

What is the output current of the charging station?

According to power, it can be divided into the following: 7KW is suitable for 220V single AC power, with an output current of 32A, using a 3-core 6- square cable. 11KW is suitable for 380V three-phase AC power, with an output current of 16A, using a 5-core 2.5 square meter cable. 22KW is suitable for 380V three-phase AC power, with an output current of 32A, using a 5-core 6-square cable.

What is the charging speed of your product?

According to 1Kwh, it can travel 6.5km, The 7KW charging station can charge 45.5km per hour, The 11KW charging station can charge 71.5km per hour, The 21KW charging station can charge 143km per hour.

How to calculate charging time?

Answer: In 220V/32A mode, the theoretical charging power is 7KW/h, which means charging 7 kWh per hour. The theoretical range for one kWh is 6.5km. Taking Tesla Model 3 (Standard Range Edition) as an example, it has a full charge range of 445km. It takes about 9 hours to fully charge.

What after-sales support is available?

In addition to quality assurance, we also provide lifetime technical support and after-sales maintenance services, product upgrade services, new product notifications, and more.
