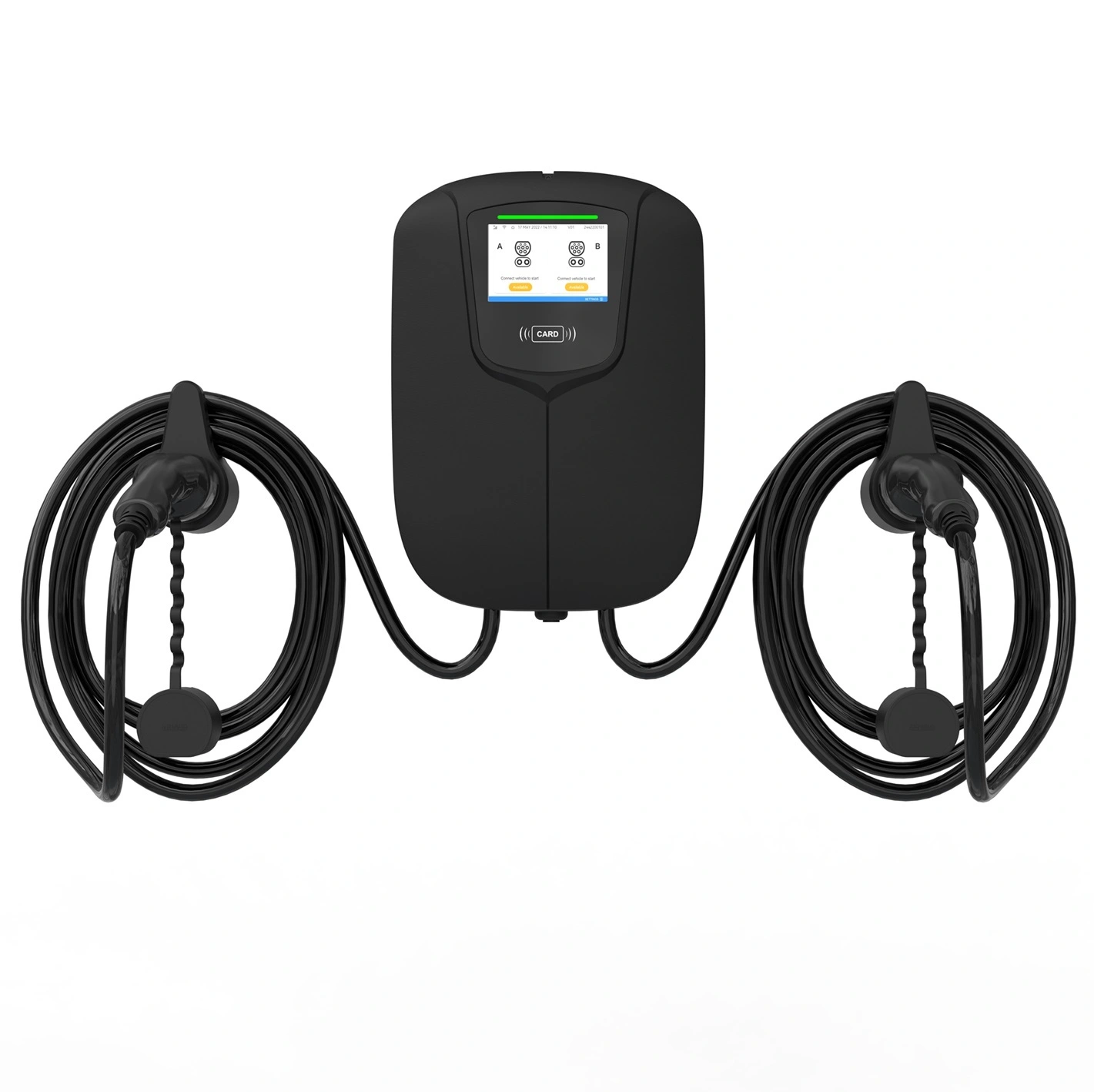

AC EV Charger Twin Wallbox with two guns 5 meter Cable for home 1

AC EV Charger Twin Wallbox with two guns 5 meter Cable for home 2

AC EV Charger Twin Wallbox with two guns 5 meter Cable for home 3

AC EV Charger Twin Wallbox with two guns 5 meter Cable for home 4

AC EV Charger Twin Wallbox with two guns 5 meter Cable for home 5

AC EV Charger Twin Wallbox with two guns 5 meter Cable for home 6

AC EV Charger Twin Wallbox with two guns 5 meter Cable for home

AC EV charging station

*400VAC/14KW/22KW/44KW

▲home use, Type 2 / contactor solution

*Double gun charging station

*5 Meter cable length*2

*IP65 black wall-mounted

*LCD screen 4.3 inch

*OCPP1.6(WSS/TLS1.2)

*RFID, APP,WIFI/Wlan(default)/4G(Optional)

*load banlance with CT(Optional)

*Yingpower WiFi smart charing(Optional)

*tuya WiFi smart charing(Optional)

*CE/IK10/ROHS certified

Model	YLEV14K-H1	YLEV22K-H2	YLEV44K-H3
Technical features
Charging capacity	Up to14KW	Up to 22KW	Up to 44KW
Input/Output power	230VAC±20%-50/60Hz 32A*2-1phase	400VAC±20%-50/60Hz- 16A*2-3phase	400VAC±20%-50/60Hz 32A*2-3phase
RCD	RCMU(Type A+DC 6mA)/Type B RCCB(Optional)
Standby power	<5W
Measuring accuracy	1%
Energy Meter	Inside with PCBA
OCPP	OCPP1.6 Json
Communication	WIFI/Ethernet/4G(Optional)
User interface	Color touch LCD(4.3")/RFID(mifare iso&IEC 14443A)
Input Plug	NEMA14-50(Optional)
Certificate/Compliance	CE/EN IEC 61851-1:2019/IEC 62955:2018/IEC61008-1:2010/EN IEC 62311:2020/EN 50665:2017 EN 50364:2018/EN 301489-1 V2.2.3/EN 301489-3 V2.1.1/EN 301489-17V3.2.4/EN IEC 61851-21-2:2021/EN IEC61000-3-11:2019/EN 61000-3-12:2011
Charging Interface	Typ2 gun *25 meter
Special Protection	0ver current protection.Residual current protection.Ground protection.Surge protection,over/Under voltage protection,Over/Under frequency protection, -P P
Physical properties
Warranty	2 years
Protection	IP65,Ik10
Enclosure	Gavanized steel
Front Panel	Temper glass
Installation	Wallbox
Cooling	Natural cooling
Operating temperature	-30"C to+55°C
Humidity	Max.95%(non-regulating)
Product Dimensions	402290132(LWH)mm
Package Dimension	550320178(LWH)mm
Net Weight	14Kg	14Kg	14Kg
Gross Weight	15.15Kg	15.15Kg	15.15Kg

The AC EV Charger Twin Wallbox is a double gun charging station designed for home use. It features a 5 meter cable for each gun, an IP65 black wall-mounted design, and a 4.3 inch LCD screen. It also offers smart charging options like RFID, APP, WIFI, and 4G connectivity. The charger is CE/IK10/ROHS certified, making it a reliable and high-quality choice for electric vehicle owners.

Inquiry

Write a Review

FAQ

What is your shipping timeline?

Below are the shipping times for different types of orders: Samples - Shipped within 72 hours Bulk Orders - 10 to 40 days, subject to the delivery time confirmed by both parties Orders of Less Than 500 Units - 15 to 20 days Orders of More Than 500 Units - 30 to 40 days

How do I choose the correct charging station power level?

There are two things to take into consideration when determining the charging power of your EV charging station: The vehicle model: 1. If the vehicle model supports up to 7kW of charging power, select a 7kW charging station. 2. If the vehicle model supports up to 11kW of charging power, select a 11kW charging station. 3. If the vehicle model supports up to 16/21kW of charing power, select a 21kW charging station (modelX, modelS). 4. If you will be charging two or more electric vehicles, consider a 21kW charging station, which is compatible with 21kW, 11kW, and 7kW electic vehicles. The update and iteration speed is fast. The electricity meter: 1. For a 220V single-phase electricity meter, select a 7kW charging station. 2. For a 380V three-phase electricity meter, select a 11kW or 21kW charging station.

What is included in the package for your charging stations? Is a warranty card included?

Our packing list includes: 1. 1 AC charging station (including gun cable) 2. 1 AC charging station user manual 3. 1 certificate of conformity 4. 4 M6*30mm rubber plugs (if product is a wall-mounted charger) 5. 4 M3*35mm flat head screws, 3 M3*25mm round head screws with pads (if product is a wall-mounted charger)

What is your return and exchange policy?

Customers can return or exchange products unconditionally within 7 days of receiving their order. We will bear the postage for any returns or exchanges that are due to quality issues. Returns or exchanges due to reasons that are not quality related must not affect the secondary sale.

What is the cost of installation?

Installation costs vary depending on the environment and location. Consult with local installation companies to determine the specific price of installation.

What kinds of EVs does your EV charger support?

Our charging stations can be used by all new energy vehicles that implement global charging standards, and they are compatible with 99.9% of electric vehicles on the market. That being said, the recommended charging power can differ depending the model of your vehicle, so please be sure to select a charging station that supports your vehicle's ideal charging power. If you provide me with the brand, model, and year of the car you have in mind, I can help you confirm compatibility.

What is the output current of the charging station?

According to power, it can be divided into the following: 7KW is suitable for 220V single AC power, with an output current of 32A, using a 3-core 6- square cable. 11KW is suitable for 380V three-phase AC power, with an output current of 16A, using a 5-core 2.5 square meter cable. 22KW is suitable for 380V three-phase AC power, with an output current of 32A, using a 5-core 6-square cable.

What is the charging speed of your product?

According to 1Kwh, it can travel 6.5km, The 7KW charging station can charge 45.5km per hour, The 11KW charging station can charge 71.5km per hour, The 21KW charging station can charge 143km per hour.

How to calculate charging time?

Answer: In 220V/32A mode, the theoretical charging power is 7KW/h, which means charging 7 kWh per hour. The theoretical range for one kWh is 6.5km. Taking Tesla Model 3 (Standard Range Edition) as an example, it has a full charge range of 445km. It takes about 9 hours to fully charge.

What after-sales support is available?

In addition to quality assurance, we also provide lifetime technical support and after-sales maintenance services, product upgrade services, new product notifications, and more.
